Apollo it is a cost-effective portable neural signal data acquisition system that is plug-and-play. the supporting software has rich functions and a friendly interface. Apollo digital signal processor (DSP）and supporting software can collect, process and analyze various types of physiological signals (such as action potentials, field potentials, eeg, emg, etc.), and can synchronize experimental event information from third-party equipment, including behavioral, electrical and optogenetic stimulation system as well as video system. battery-powered mode helps eliminate environmental noise and obtain high-quality signals with a higher signal-to-noise ratio.Apollothe system is small in size, has low installation requirements, and can be easily moved between different locations, making it ideal for acute recording experiments or simple in vivo experiments.

features:

              * up to 32 neural signal channels;
              * 30kHz high-precision sampling rate, 16 bit resolution;
              * user-defined digital filters;
              * common mode rejection ratio (CMRR)：≥82dB；
              * recording data types: original broadband signals, high-frequency neuronal firing ( Spike） signals and low-frequency field potentials ( LFP）；
              * support Single eletrode、Stereotrode、Tetrode record;
              * digital input: 2 channels;
              * analog input: 2 channels;
              * battery powered option (eliminates power frequency noise interference).

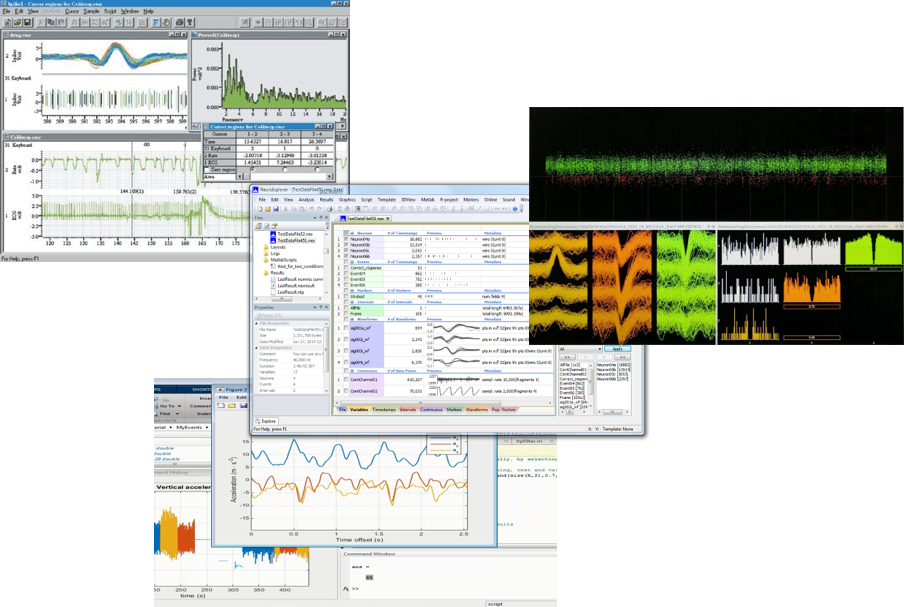

      data acquisition software:Apolloonline neural signal acquisition software with a friendly user interface and ease of use. the software has signal acquisition, signal processing, visualization andspikesdetection, online identification and data storage functions. original signal,Spikecontinuous signals and field potential signals can be easily displayed.

       compatible with third-party software:

features:

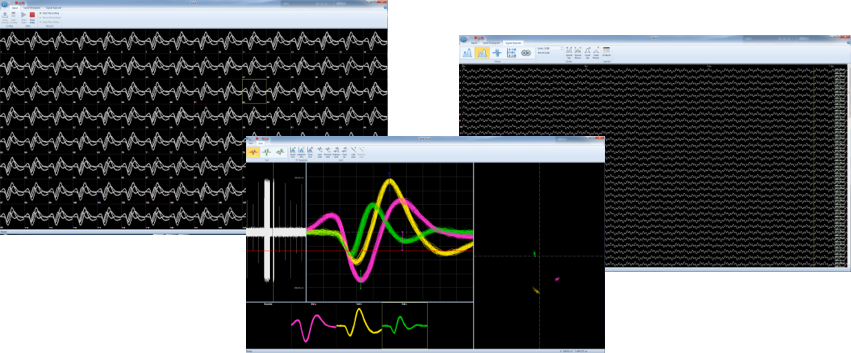

* can simultaneously display the original unfiltered signal, high frequencySpikesignals and low-frequency signals, such asLFP/EEG/EMG；

* parameters such as filtering, threshold and display speed can be set in the software;

* preset configuration files can be called for easy startup;

* can integrate video recording and user animal behavior experiments;

* easy to operate and friendly interface.

applications:

1. systems neuroscience research

2.neurophysiology training

3.pharmacological research

4.advanced neurophysiology

5.surgical monitoring
