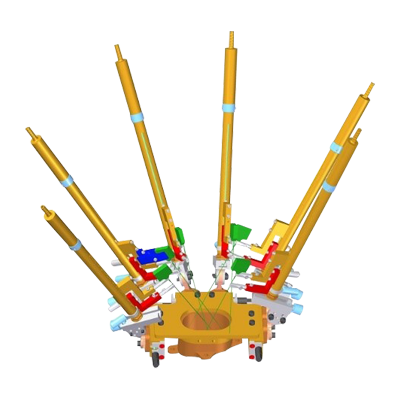

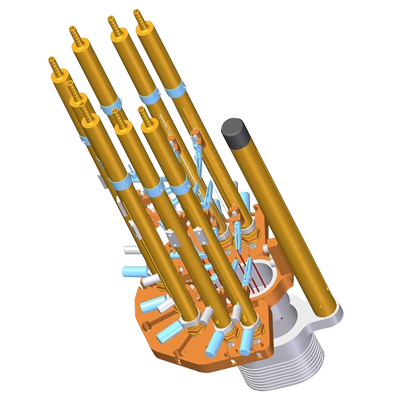

NAN primate electrode thruster Multi-channel driver with round base. The size is proportional to the number of channels. The size of the 10 channel is 82 mm.The unique patented design of this system provides the following features:* Each Tetrods electrode/microelectrode can be manipulated independently in the XY plane* Each Tetro

Multi-channel driver with round base. The size is proportional to the number of channels. The size of the 10 channel is 82 mm.

The unique patented design of this system provides the following features:

* Each Tetrods electrode/microelectrode can be manipulated independently in the XY plane

* Each Tetrods electrode/microelectrode can be operated in the Z-axis direction with a user-defined working depth (up to 150mm) and precise 0.001 to 0.2mm/s velocity, with a minimum resolution of up to 1 micron for movement.

* Light weight - the basis weight of each terminal is 8 grams.

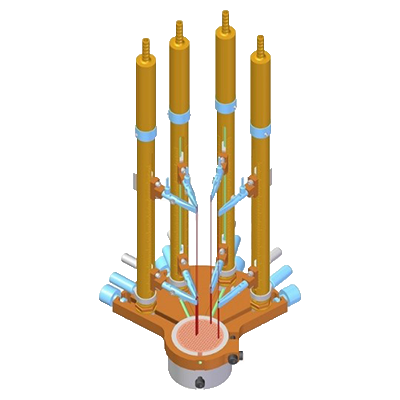

NAN-S4 4-channel driver

The unique patented design of this system provides the following features:

Supports 4 electrodes.

Each set of electrodes can be manipulated independently in the XY plane.

Each set of electrodes can be displaced up to 100 mm in the Z-axis and can be operated at a precise speed of 0.001 to 0.5 mm/s with minimal movement

Resolution up to 1 micron.

Modular design.

Lightweight - The system weighs approximately 157 grams for 100 channels and includes: cannula (7 grams), base (22.7 grams) and 25 terminals of 5.1 grams each.

A special cover can be used to seal the system and keep it on the head all night.

Humanized computer control system.

Built-in HeadStage.



Each electrode can be manipulated independently in the XY plane.

The minimum resolution is up to 1 micron.

Modular terminal design.

A special cover can be used to seal the system and keep it on the head all night.

Humanized computer control system.






  • NAN primate electrode thruster.pdf
